MINERAL FIBER PANEL
FIRE RESISTANT
Code:
KM-BOARD V1

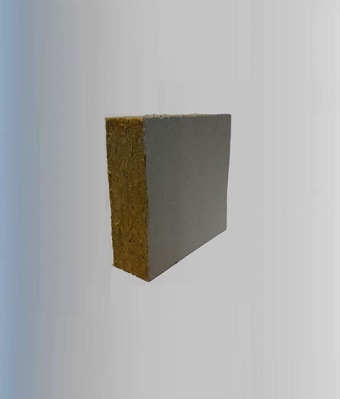

The KM BOARD V1 panel is a self-supporting, high-density, basalt rock mineral fibre panel pressed with special thermosetting resins, treated on one side with an intumescent coating based on sodium silicate.
Contact us
Concact usPRODUCT SHEET
FORMAT
Panel dimensions 1000x600 mm, thickness 60 mm.
FIELDS OF USE
The KM BOARD V1 panel is used to seal the gap between a structural element and a cable duct, fuel pipe, metal pipe, insulated metal pipe, or fire damper. Some sealing systems involve applying the KM BOARD V1 panel with the KM-FF 107 gasket, the KM-FF 108 gasket, the KM-FC 120/180 COVER coating, and the KM SEALER F sealant.
DIRECTIONS FOR USE
Shape the KM BOARD V1 panel to size with a serrated blade and insert the panel into the gap of the penetration hole. Then seal the joints between the panel and the structural element with KM SEALER F.
The sealing must be done on both sides of the wall/floor, making sure to install the panels with the treated surface facing outward.
CERTIFICATIONS • According to European Standard UNI-EN 1366-3
See our installation solutionsContact usPanel dimensions 1000x600 mm, thickness 60 mm.
FIELDS OF USE
The KM BOARD V1 panel is used to seal the gap between a structural element and a cable duct, fuel pipe, metal pipe, insulated metal pipe, or fire damper. Some sealing systems involve applying the KM BOARD V1 panel with the KM-FF 107 gasket, the KM-FF 108 gasket, the KM-FC 120/180 COVER coating, and the KM SEALER F sealant.
DIRECTIONS FOR USE
Shape the KM BOARD V1 panel to size with a serrated blade and insert the panel into the gap of the penetration hole. Then seal the joints between the panel and the structural element with KM SEALER F.
The sealing must be done on both sides of the wall/floor, making sure to install the panels with the treated surface facing outward.
CERTIFICATIONS • According to European Standard UNI-EN 1366-3
TECHNICAL DATA
Color: Grey (treated surface) / Straw yellow (panel)
Surface treatment: Sodium silicate-based intumescent coating
Specific weight: 150 kg/m³
Flash point: Non-flammable
Reaction to fire: Non-combustible according to EN 13501-1 (Euroclass A1)
Use temperature: 750ºC continuous/800ºC peak (untreated panels)
Thermal resistance: 0.039 λ at 50ºC, 0.050 λ at 150ºC, 0.065 λ at 250ºC, 0.087 λ at 350ºC
Bending radius: 3000 mm
Hazardous reactions: None observed
Storage: Unlimited, if stored in original packaging, at room temperature,
sheltered from moisture
Transport: No restrictions by land, no ICAO/IATA-DGR restrictions
(Do not come into direct contact with edible products).
FURTHER INFORMATION
Precautionary measures: No precautionary measures are required for use or handling.
Acute effects from exposure: None
Classification and labeling: The material does not require any special labeling.
Risk phrases: None
Precautionary statements: None
