FIRE RESISTANT GASKET FOR ELECTRICAL SOCKETS AND SWITCH BOX
Code:
KM-CGS
KM-CGSQ BOX
KM-CGSQ BOX
The system consists of a preformed fire-resistant graphitic intumescent fibre sheet. In case of fire, the material expands and protects the boxes for electrical installations.
Contact us
Contact usPRODUCT DETAILS
DESCRIPTION
Preformed fire fighting graphitic sheet KM-FF107.
FUNCTIONALITY
The adhesive preformed sheet is applied to protect the sides and the back of the box or junction box.
The seal protects against fire and replaces the plasterboard removed to make the hole of boxes or junction boxes.
CERTIFICATIONS • According to European Standard UNI-EN 1366-3 EI 120-EI 60/E 90 on plasterboard walls.
FEATURES

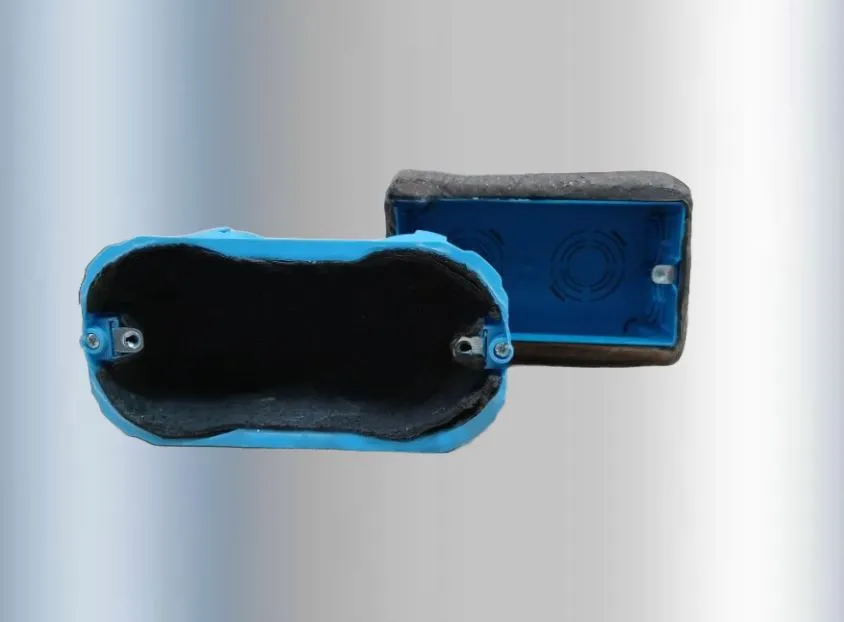

KM-CGS/CGSQ Box is a graphitic intumescent preformed sheet for the fire protection of boxes or junction boxes for electrical installations.
APPLICATION
Supplied in sheets of fixed size for the fire protection of electrical appliances. The preformed sheets have a 45° cut on the four corners. Remove the protective film from the adhesive side and apply the gasket on the rear side of the box. Fold the edges of the gasket so that it sticks on the sides of the box. Make the holes for corrugated electrical pipes with a cutter. Introduce the protected box in the hole on the plasterboard wall.
Check out our installation solutionsContact usPreformed fire fighting graphitic sheet KM-FF107.
FUNCTIONALITY
The adhesive preformed sheet is applied to protect the sides and the back of the box or junction box.
The seal protects against fire and replaces the plasterboard removed to make the hole of boxes or junction boxes.
CERTIFICATIONS • According to European Standard UNI-EN 1366-3 EI 120-EI 60/E 90 on plasterboard walls.
FEATURES
KM-CGS/CGSQ Box is a graphitic intumescent preformed sheet for the fire protection of boxes or junction boxes for electrical installations.
APPLICATION
Supplied in sheets of fixed size for the fire protection of electrical appliances. The preformed sheets have a 45° cut on the four corners. Remove the protective film from the adhesive side and apply the gasket on the rear side of the box. Fold the edges of the gasket so that it sticks on the sides of the box. Make the holes for corrugated electrical pipes with a cutter. Introduce the protected box in the hole on the plasterboard wall.
TECHNICAL DATA
Colour: dark grey
Density: 225 kg/m3
Sizes: 245x150/115x62/62 mm
Thickness: 1.5 mm
Free expansion: 5 times at 450ºC in 15 min
Pressure: 5 bar at 400ºC
Flashpoint: non-flammable
Reaction temperature: 250°C
Compressibility: up to 50%
Dangerous reactions: none observed
Storage inside room, not exposed to water and moisture
Transport: no restrictions on land
no restrictions ICAO/IATA-DGR
(not in direct contact with edible products)
FURTHER INFORMATION
It does not require any precautionary measures, for its use and handling
Acute effects to exposure: none
Classification and labeling: the material does not require any special labeling
Warnings: none
Safety advice: none
